Viktor Glebov
Project Autonavi 2008
| Property | Value |
|---|---|
| Started on | May 2007 |
| Device Released | Apr 2008 |
| Author | Viktor Glebov (V01G04A81) |
| Series | Small Series (x10) Prototype |
Main Device Board
Dual 32-bit ARM MCU Board with CPLD
- x2 32-bit AT91SAM7X256
- x2 SRAM 512 KBytes
- x3 74HC573 I/O Extender
- x1 Xilinx CPLD XC95144XL
- x1 GPS Interface
- x1 GSM/GPRS Modem Interface
- x4 USART Interface / external devices control
- x1 CAN Interface
- x1 IDE Interface ( reserved for upgrade )
- x1 SD-Card Interface
- x1 I2C RTC
Integrated devices
- Main Avtonavi board ( Dual AT91SAM7X256 + XC95144XL )
- Automotive power supply board 12V/24V
- GPS + GPRS extension board
- Embedded videocard ( Videocard-2008 )
- Embedded MP3 Player ( based on AT91SAM7S64 )
- Front Panel Device with B&W LCD
- LED Panels
- Infrared sensor / Passenger counter

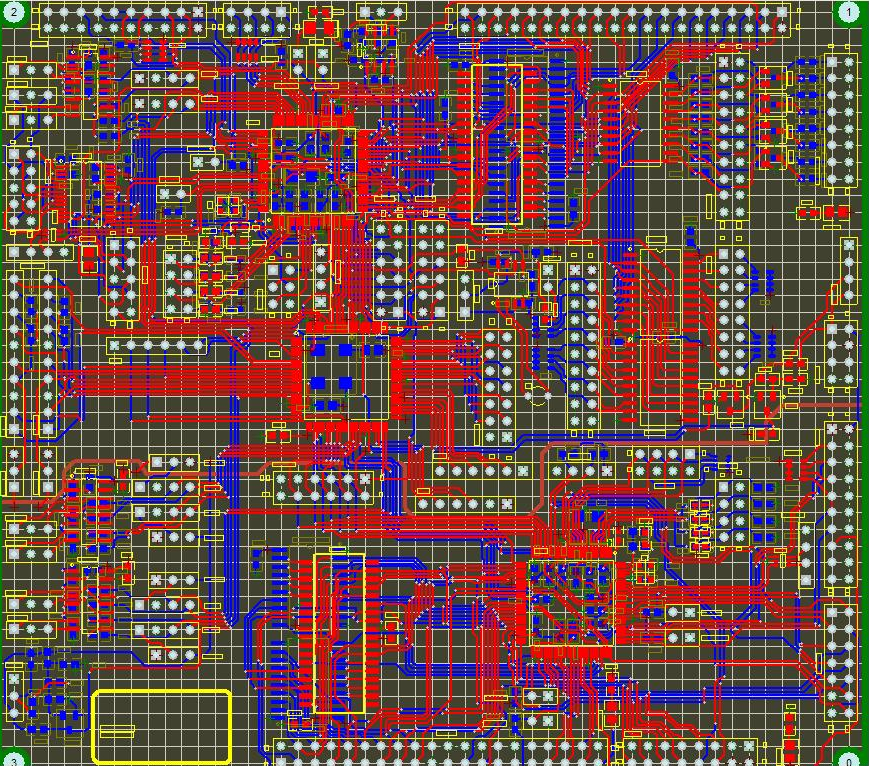

PCB Layout |
Main Board |
PCB Layout 3D |

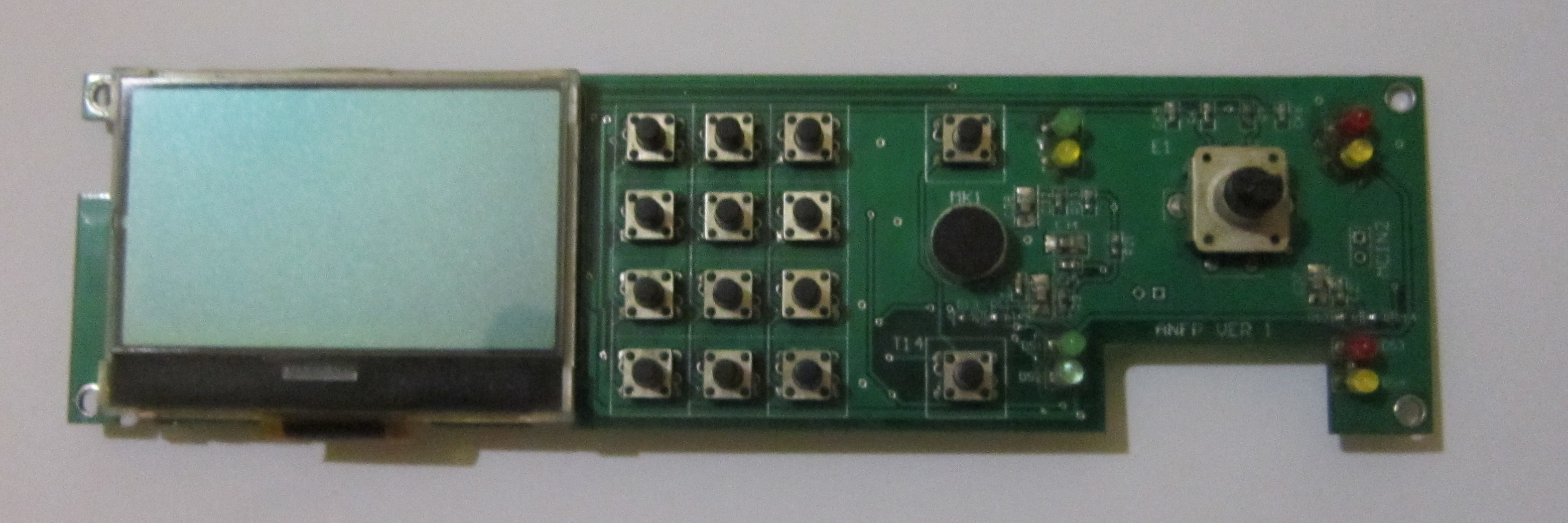

Front Panel Device |

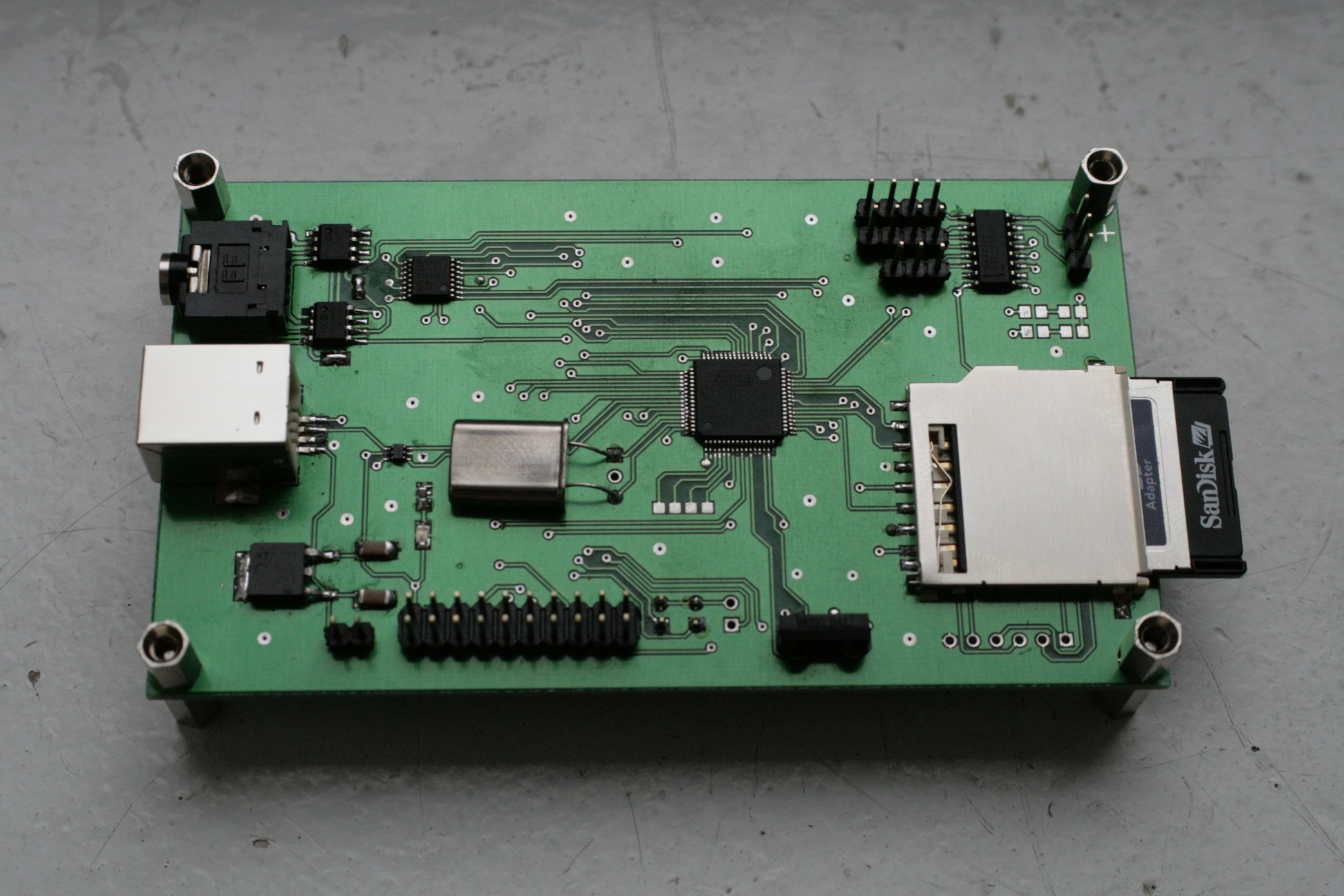

Embedded MP3 Player ( AT91SAM7S64 + UDA1334 ) |

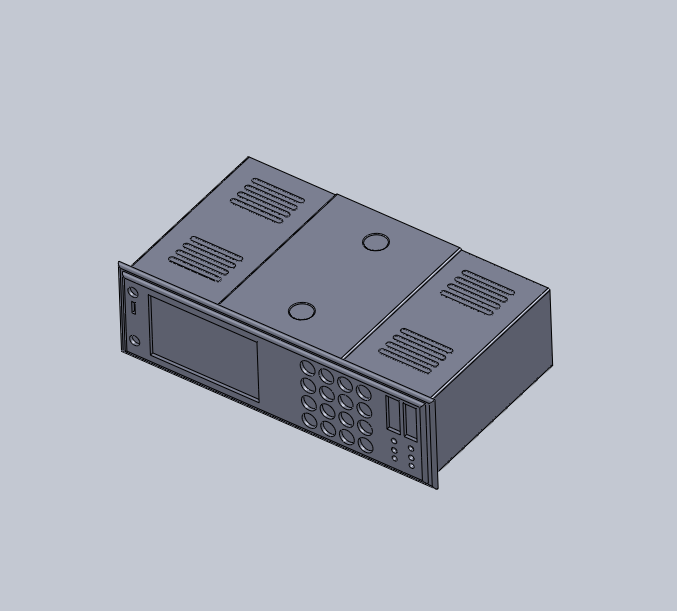

Enclosure 3D model |

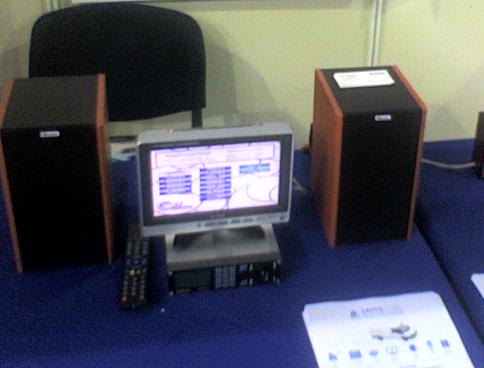

Presentation of the device at an automotive and transport expo |

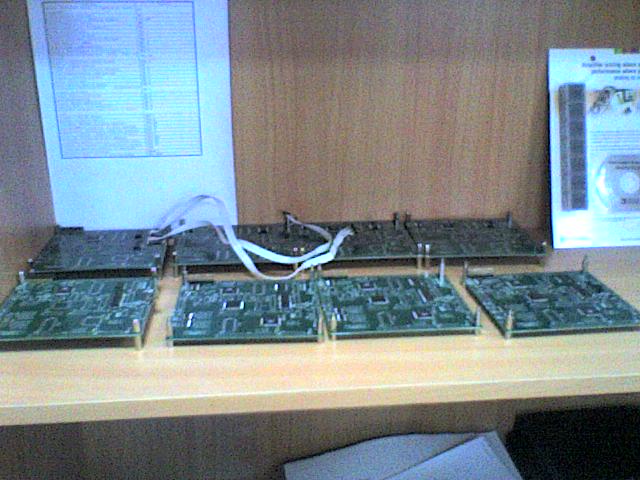

Devices assembly process |
PCB Layout
PCB Layout

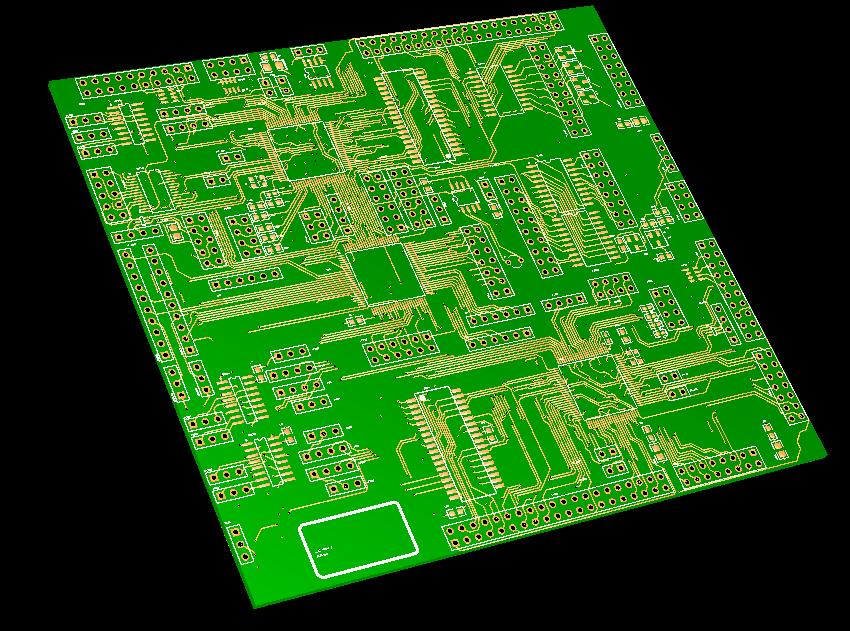

PCB Layout 3D
PCB Layout 3D

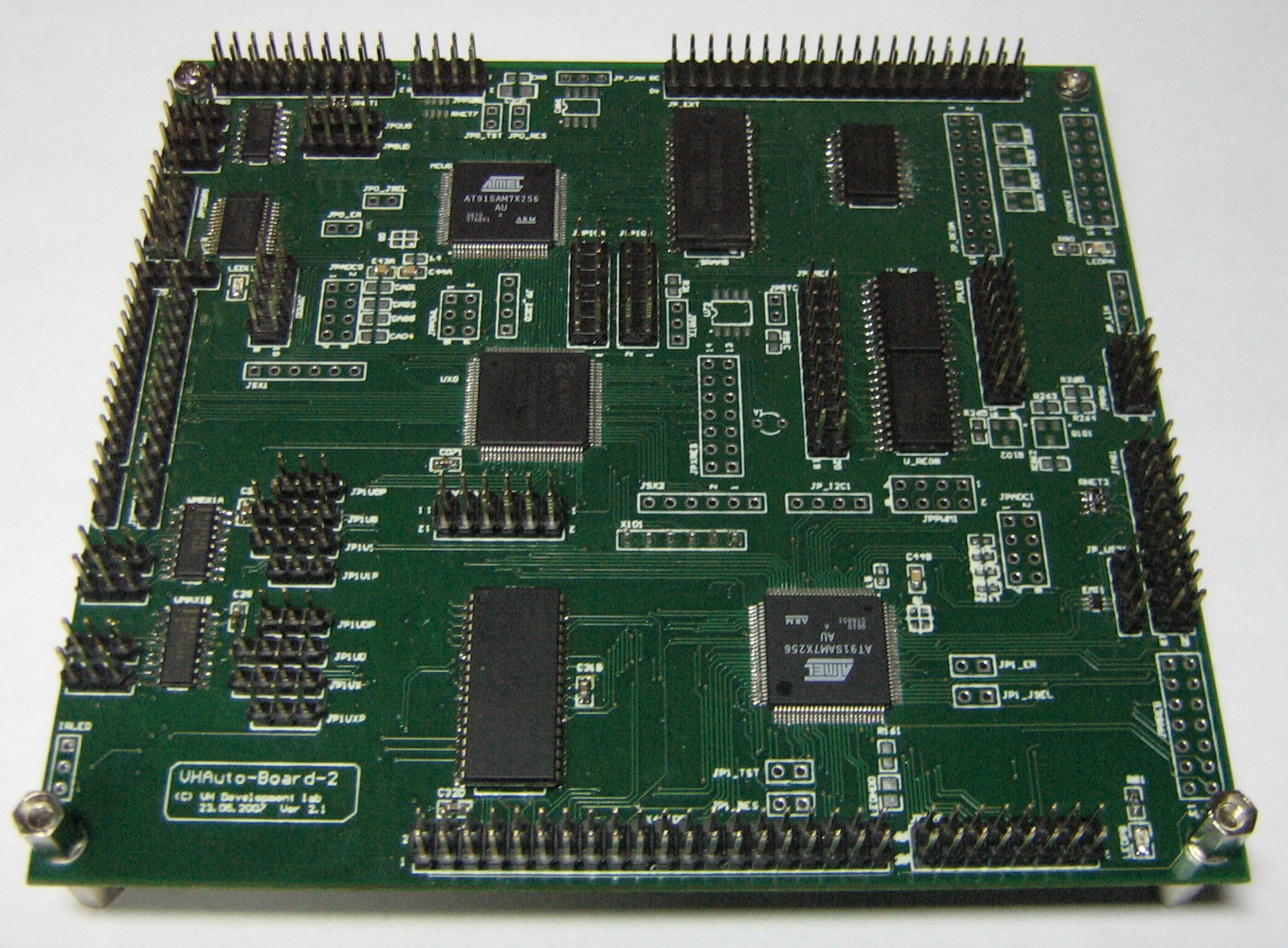

Main Board
Main Board

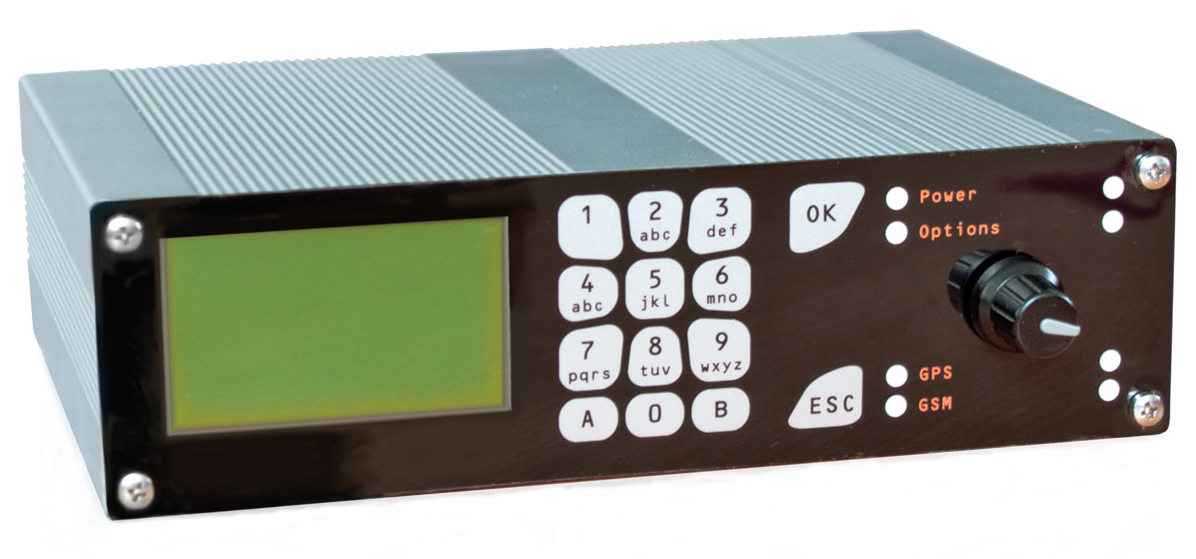

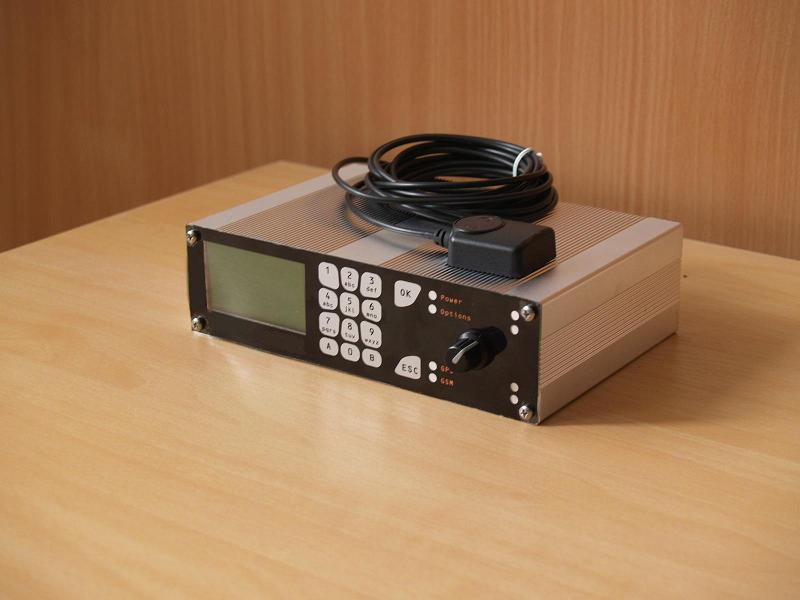

Assembled Device
Assembled Device
