pushk2pre1move

PUSHK Archiver: representation-first compression filter `move`

Filter name pushk2pre1move

Author : V01G04A81 Viktor Glebov

Block Move / Transform

Overview

Block Move / Transform
Transformation filter based on a counter-driven operation. Operations based on counter This pre-filter is designed to rearrange data blocks in a deterministic manner to improve compression efficiency when used with standard compressors (LZMA, ZIP, 7z, etc.).

Parameters

Parameter	Description
`<filename_in>`	Input file name
`<offset_bytes>`	Byte offset within the source file — starting point for transformation
`<transform.yaml>`	Transformation configuration file (YAML format)
`<filename_out>`	Output file name

Test Methodology

For each image, transformation filters were applied:
- zx_filter_a, zx_filter_b for examples 1–6
- cl_filter_a, cl_filter_b for examples 7–8
As a result, the following output directories were generated:
- results1 - results8
- results1a - results8a
- results1b - results8b
All output data was compressed using a set of compressors:
zip, arj, 7zip, xz, and others
Compression results were collected and organized into comparison tables

Visual Samples

Platform : ZX Spectrum video memory dump

`example1.scr` HEWSON	`example2.scr` Jarlaxe	`example3.scr` Manu
`example4.scr` moroz1999	`example5.scr` Rado Javor	`example6.scr` mr r0ckers

Hardware optimized Tiles

Platform : MCU + FPGA ( STM32F407 + XC6SLX9 ) Video RAM dump

Preview	File	Author
	`example7.bin`	V01G04A81
	`example8.bin`	V01G04A81
	`example9.bin`	V01G04A81
	`example10.bin`	V01G04A81

Test Files

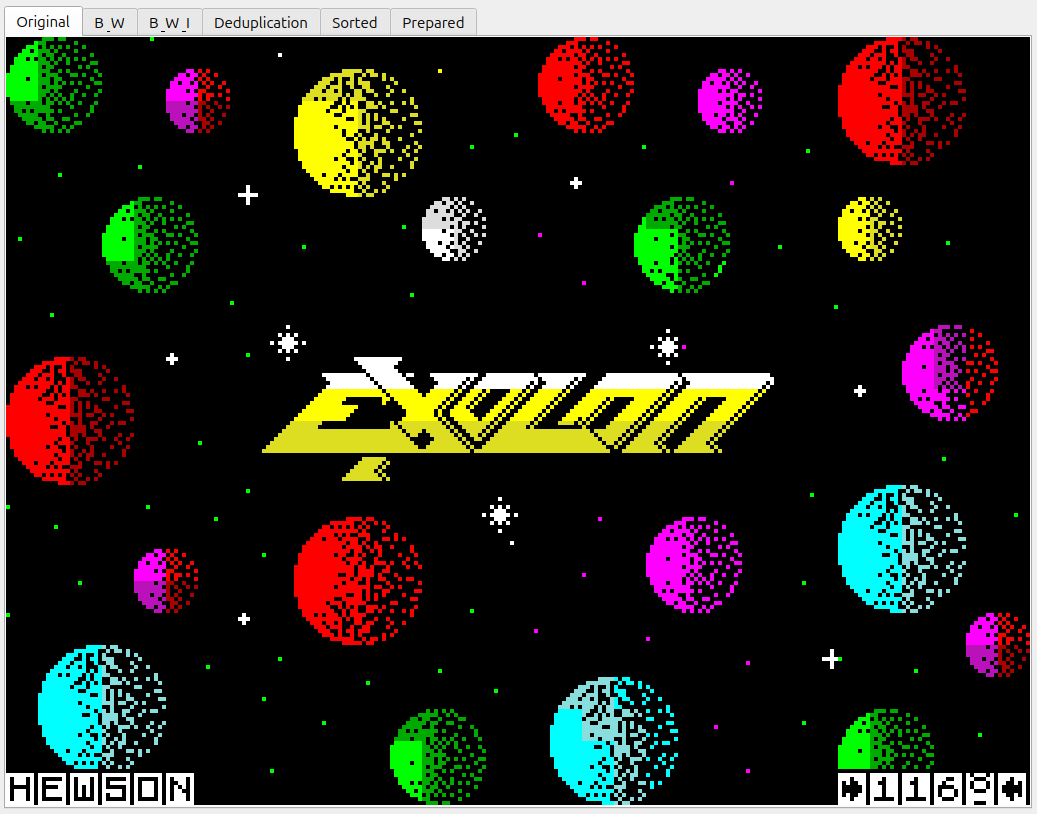

example1.scr		HEWSON - Exolon Title

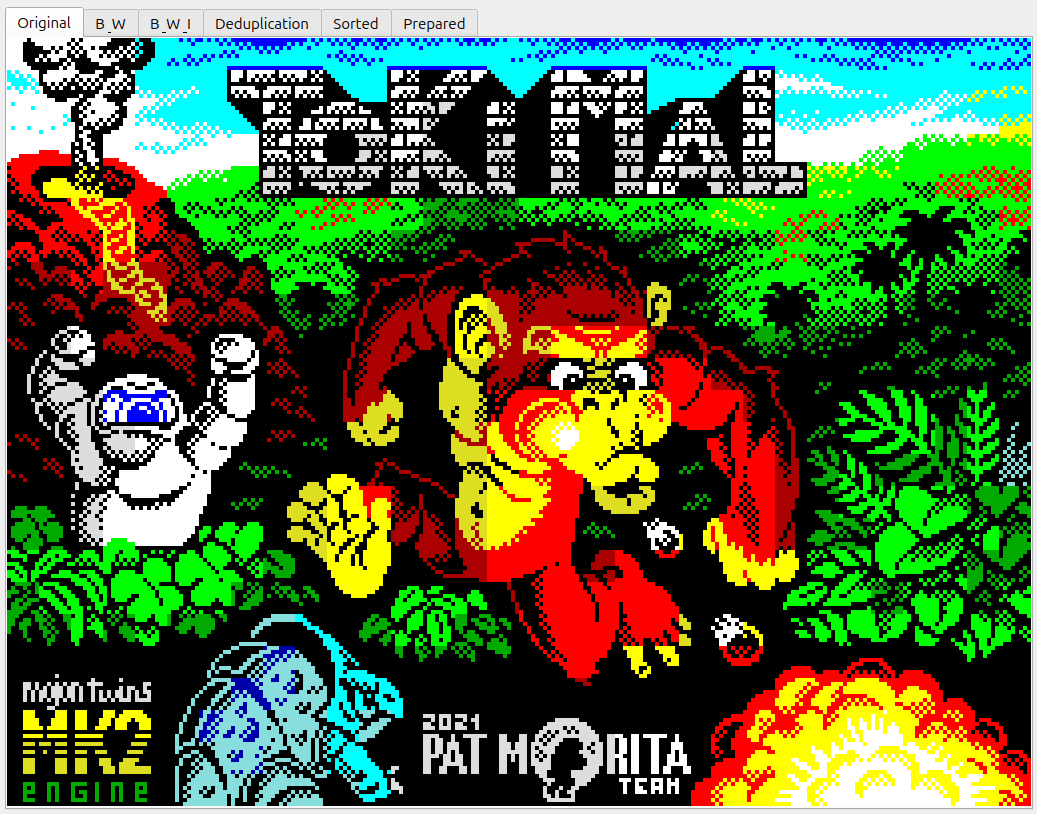

example2.scr		Jarlaxe - Tokimal (2021).scr

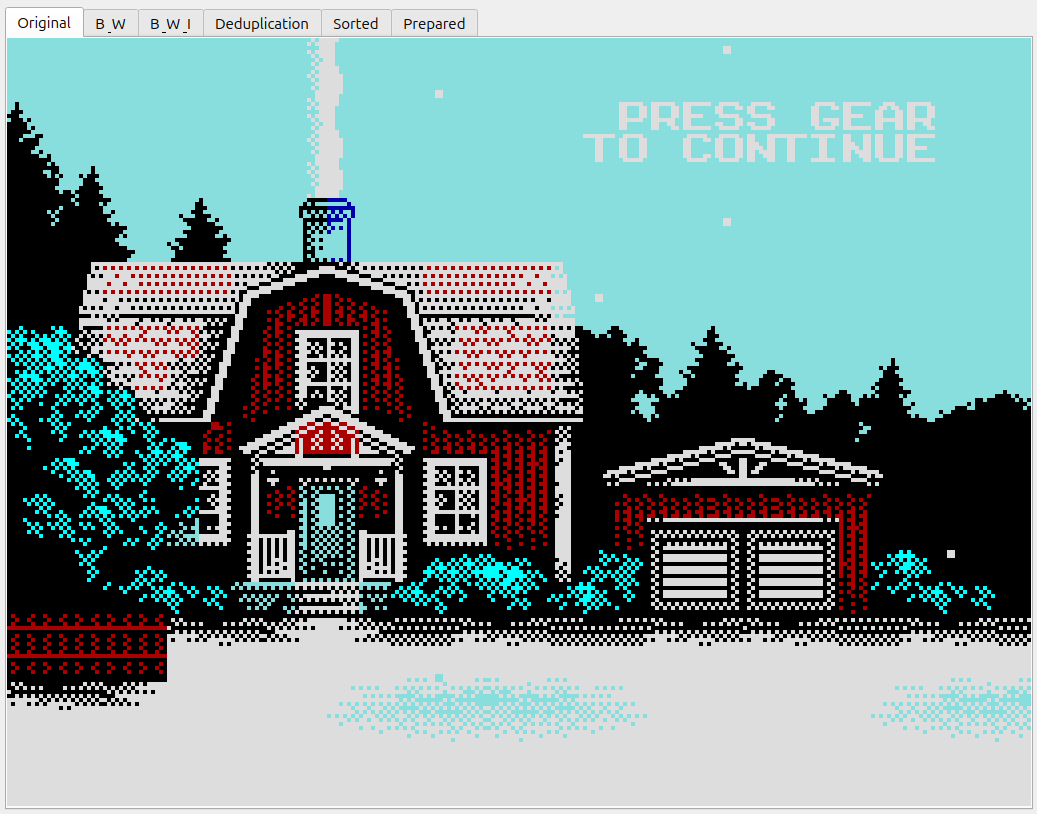

example3.scr		Manu - Sven's home in the snow (2021).scr

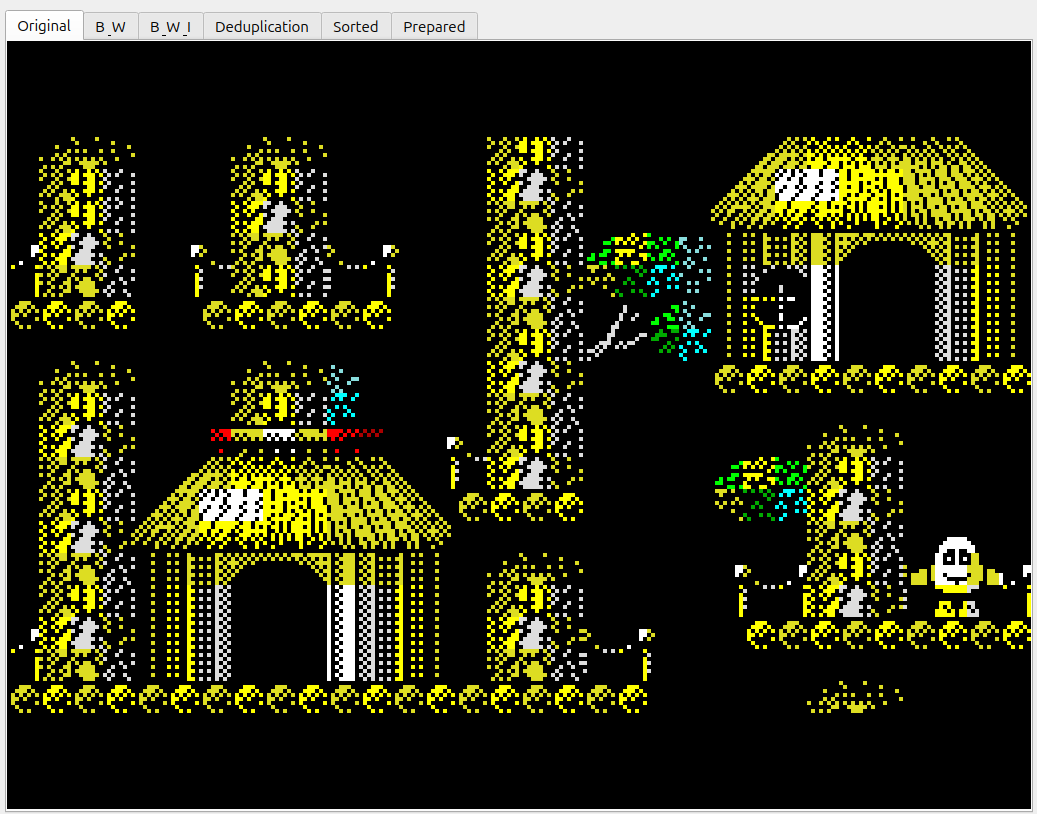

example4.scr		moroz1999 - Crystal Kingdom Dizzy in-game 01 (2017).scr

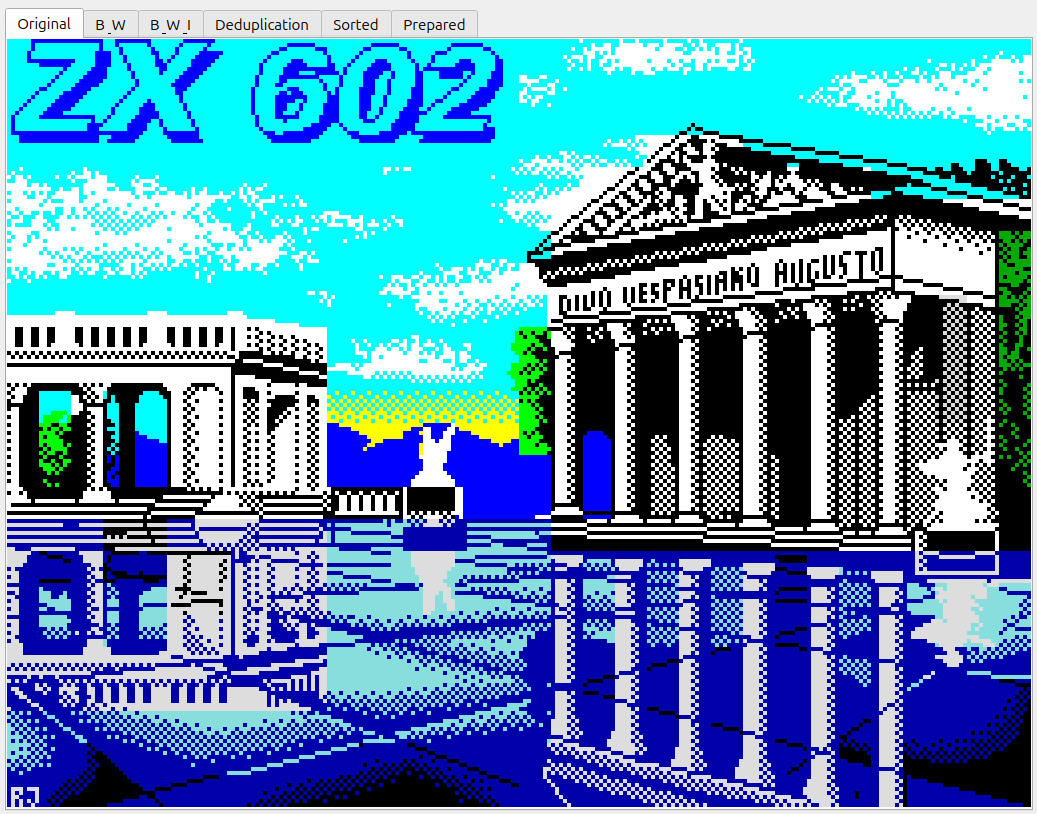

example5.scr		Rado Javor - ZX602 (1994).scr

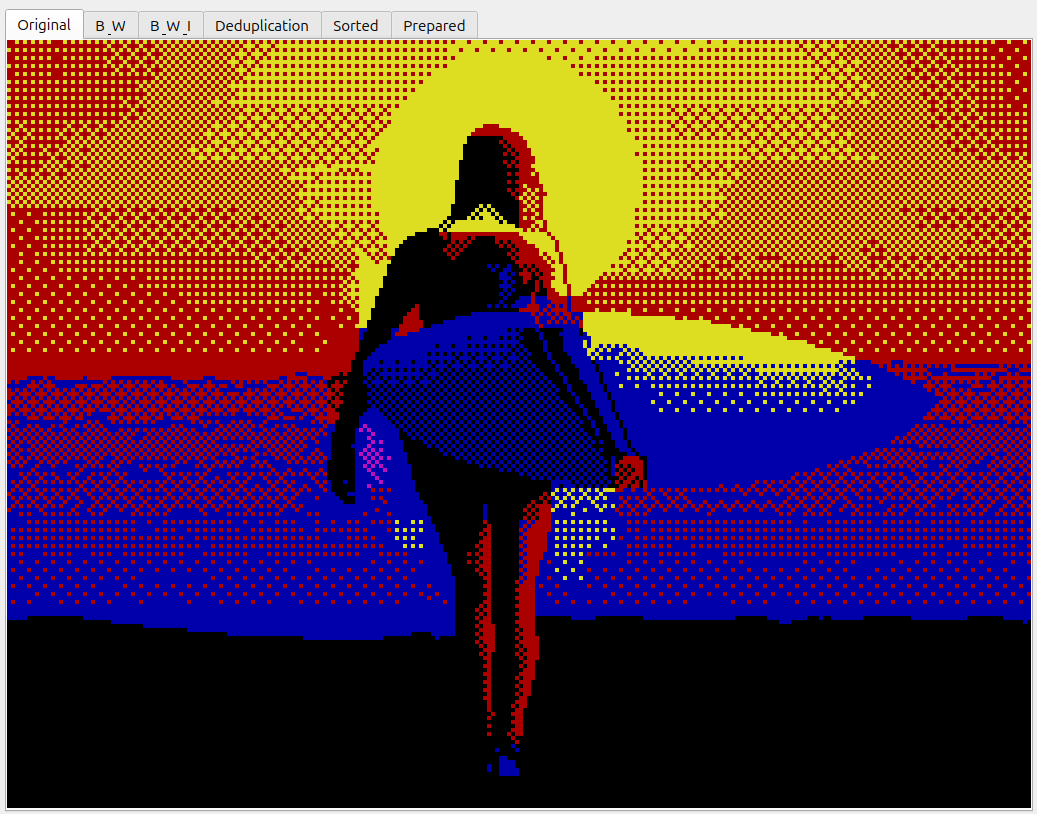

example6.scr		mr r0ckers - Blue Surf (2015) (Chaos Constructions 2015, 1).scr
example7.bin 		V01G04A81 Exoloneur Test Cells
example8.bin 		V01G04A81 Custom Font 8x8
example9.bin		V01G04A81 One more example 9
example10.bin		V01G04A81 One more example 10

Notes

The transformation operates deterministically based on a counter.
Designed as a pre-processing step before compression.
Particularly effective on structured pixel data (e.g., ZX Spectrum screens).

Compression Benchmark

Values represent: original → transformed → fragmented

Базовый файл (размер)	LZMA	XZ	7z	RAR	GZ	BZ2	ZIP	ARJ
example1.scr (6912)	1876 / 1648 / 1348	1924 / 1696 / 1396	1988 / 1784 / 1464	2115 / 1953 / 1524	2163 / 2193 / 1464	2367 / 2350 / 1777	2306 / 2337 / 1608	2329 / 2374 / 1618
example2.scr (6912)	5433 / 5360 / 4999	5480 / 5404 / 5044	5545 / 5490 / 5137	5656 / 5608 / 5327	5493 / 5467 / 5215	6127 / 6117 / 5561	5636 / 5611 / 5359	5602 / 5570 / 5317
example3.scr (6912)	2591 / 2465 / 2151	2636 / 2512 / 2196	2702 / 2576 / 2262	2770 / 2663 / 2294	2792 / 2718 / 2259	3057 / 3048 / 2690	2935 / 2862 / 2403	2914 / 2838 / 2384
example4.scr (6912)	1751 / 1592 / 1049	1796 / 1640 / 1096	1862 / 1721 / 1168	1897 / 1816 / 1205	1949 / 1992 / 1146	2211 / 2196 / 1464	2092 / 2136 / 1289	2095 / 2134 / 1263
example5.scr (6912)	4208 / 4039 / 3906	4256 / 4084 / 3952	4363 / 4172 / 4027	4479 / 4354 / 4058	4368 / 4285 / 4056	4923 / 4909 / 4603	4511 / 4429 / 4200	4498 / 4413 / 4183
example6.scr (6912)	1981 / 1911 / 1841	2028 / 1956 / 1888	2108 / 2033 / 1962	2117 / 2048 / 2022	2099 / 2050 / 1990	2253 / 2272 / 2192	2242 / 2194 / 2134	2224 / 2165 / 2113
example7.bin (16384)	1803 / 1852 / 1723	1848 / 1900 / 1768	1561 / 1923 / 1828	2329 / 2304 / 2784	3203 / 3133 / 2764	3688 / 3704 / 3381	3346 / 3277 / 2908	3415 / 3336 / 2939
example8.bin (16384)	1688 / 1730 / 1579	1736 / 1776 / 1624	1780 / 1814 / 1682	1914 / 1948 / 1766	1953 / 1995 / 1866	1949 / 1957 / 1789	2096 / 2139 / 2010	2078 / 2115 / 2059
example9.bin (16384)	1314 / 1311 / 1229	1360 / 1356 / 1276	1435 / 1400 / 1347	1492 / 1479 / 1384	1670 / 1626 / 1441	1715 / 1724 / 1673	1813 / 1770 / 1584	1850 / 1790 / 1570
example10.bin (16384)	1210 / 1187 / 1370	1256 / 1232 / 1416	1349 / 1311 / 1474	1421 / 1395 / 1546	1558 / 1498 / 1572	1664 / 1656 / 1619	1702 / 1643 / 1717	1716 / 1657 / 1660

Application flow

1. PARSE INPUT PARAMETERS
|
2. LOAD ORIGINAL               ( to BLOCK #1 - SOURCE )
|
3. CLONE                       ( to BLOCK #2 - DESTINATION )
|
4. TRANSFORM                   ( According to settings array )
|
5. SAVE TRANSFORMED            ( BLOCK #2 )

Описание фильтров ( параметров ) трансформации :

zx_filter_a.yaml	Преобразование дампа ZX Spectrum > линейное адресное пространство
zx_filter_b.yaml	Преобразование дампа ZX Spectrum > Фрагментация ячеек
cl_filter_a.yaml	Преобразование дампа SDRAM_32 (2x16) > линейное адресное пространство
cl_filter_b.yaml	Преобразование дампа SDRAM_32 (2x16) > Фрагментация ячеек

Обратная трансформация ( для проверки целостности )

zx_filter_ar.yaml	Обратное преобразование в дамп ZX Spectrum
zx_filter_br.yaml	Обратное преобразование в дамп ZX Spectrum
cl_filter_ar.yaml	Обратное преобразование в дамп SDRAM_32 ( 2x16 )
cl_filter_br.yaml	Обратное преобразование в дамп SDRAM_32 ( 2x16 )

Transformation array configuration example ( YAML file format )

Example:


counter:
  init: 0
  step: 1
  volume: 192
  unit_size: 32

transform:
  src:
    - format: 2
      scaler: 2048
    - format: 3
      scaler: 32
    - format: 3
      scaler: 256

  dst:
    - format: 8
      scaler: 32

Папка results результатов

example1 - example10 : compressed files

Папка ‘check’ - проверка обратной трансформации ( MD5 )

example1 - example10 : restored files

Compare all files content with md5sum tool ( MD5 )

Базовый файл (размер)	Вариант A (ar)	Вариант B (br)	Основной файл (scr/bin)
example1.scr (6912)	4a9db57bd34af7c7464918f555b84c1a	4a9db57bd34af7c7464918f555b84c1a	4a9db57bd34af7c7464918f555b84c1a
example2.scr (6912)	7f0979997837b47b5c2dcb48cf9f8d0b	7f0979997837b47b5c2dcb48cf9f8d0b	7f0979997837b47b5c2dcb48cf9f8d0b
example3.scr (6912)	36a03fc3dc2ed1c1109171db06fcfd23	36a03fc3dc2ed1c1109171db06fcfd23	36a03fc3dc2ed1c1109171db06fcfd23
example4.scr (6912)	b47bc2e1835a88154ea2d189f4161bd6	b47bc2e1835a88154ea2d189f4161bd6	b47bc2e1835a88154ea2d189f4161bd6
example5.scr (6912)	3d281b5830f931f5d4d199a048471fe5	3d281b5830f931f5d4d199a048471fe5	3d281b5830f931f5d4d199a048471fe5
example6.scr (6912)	9dd68048dc15525af9acfa6883398ddb	9dd68048dc15525af9acfa6883398ddb	9dd68048dc15525af9acfa6883398ddb
example7.bin (16384)	66d2c7887b401109f466de65cf83c4f5	66d2c7887b401109f466de65cf83c4f5	66d2c7887b401109f466de65cf83c4f5
example8.bin (16384)	dca17a92e634a3c93a458f37ea6629bb	dca17a92e634a3c93a458f37ea6629bb	dca17a92e634a3c93a458f37ea6629bb
example9.bin (16384)	af09d0550b794b051fb0ce2f316793cc	af09d0550b794b051fb0ce2f316793cc	af09d0550b794b051fb0ce2f316793cc
example10.bin (16384)	a7637f24d09cd964b39703bd2c9bc341	a7637f24d09cd964b39703bd2c9bc341	a7637f24d09cd964b39703bd2c9bc341

Все трансформации обратимы !

Notes

Original .scr files are ZX Spectrum screen dumps (6912 bytes).
.bin files are larger synthetic or processed datasets (16384 bytes).

Observations (brief)

LZMA / XZ consistently provide the best compression ratio.
7z is close to LZMA but slightly worse in most .scr cases.
RAR shows stable but not leading performance.
GZ / ZIP / ARJ are noticeably weaker for these datasets.
BZ2 performs worst on highly structured screen data.

Compression Benchmark Trixs

https://trixs.sk/8bit-computer/

examples_trix folder content :

Values represent: original → transformed → fragmented

Файл (6912)	7z (О / A / B)	arj (О / A / B)	bz2 (О / A / B)	gz (О / A / B)	lzma (О / A / B)	rar (О / A / B)	xz (О / A / B)	zip (О / A / B)
trix1.scr	4394 / 4228 / 3971	4706 / 4629 / 4170	5190 / 5178 / 4504	4597 / 4505 / 4058	4228 / 4096 / 3847	4617 / 4519 / 4081	4276 / 4144 / 3892	4737 / 4646 / 4199
trix2.scr	4226 / 4152 / 3768	4284 / 4262 / 3901	4545 / 4551 / 4113	4174 / 4146 / 3794	4131 / 4019 / 3652	4308 / 4271 / 3840	4176 / 4064 / 3700	4314 / 4287 / 3935
trix3.scr	2453 / 2411 / 2548	2556 / 2532 / 2649	2996 / 2968 / 2779	2451 / 2426 / 2529	2366 / 2302 / 2428	2512 / 2462 / 2599	2412 / 2348 / 2476	2591 / 2567 / 2670
trix4.scr	4931 / 4853 / 4480	5107 / 5057 / 4641	5739 / 5750 / 5039	5009 / 5152 / 4759	4809 / 4745 / 4365	5126 / 5065 / 4659	4856 / 4792 / 4412	5149 / 5092 / 4674
trix5.scr	2274 / 2220 / 2016	2571 / 2487 / 2152	2818 / 2791 / 2310	2450 / 2360 / 2040	2174 / 2106 / 1898	2452 / 2353 / 2082	2220 / 2152 / 1944	2590 / 2501 / 2181
trix6.scr	5250 / 5213 / 4882	5300 / 5263 / 5052	5828 / 5845 / 5327	5194 / 5160 / 4943	5147 / 5090 / 4764	5360 / 5306 / 5061	5192 / 5136 / 4812	5334 / 5301 / 5084
trix7.scr	4137 / 4019 / 3647	4351 / 4297 / 3871	4641 / 4651 / 3921	4244 / 4175 / 3759	3995 / 3882 / 3543	4335 / 4250 / 3773	4040 / 3928 / 3588	4384 / 4316 / 3900
trix8.scr	3754 / 3668 / 3238	3973 / 3885 / 3417	4255 / 4249 / 3526	3866 / 3778 / 3299	3627 / 3542 / 3113	3860 / 3797 / 3345	3672 / 3588 / 3160	4006 / 3919 / 3440
trix9.scr	4618 / 4495 / 4106	4678 / 4665 / 4262	5021 / 5043 / 4313	4559 / 4547 / 4147	4476 / 4355 / 4004	4717 / 4645 / 4169	4524 / 4400 / 4048	4699 / 4688 / 4288
trix10.scr	3783 / 3744 / 3415	4040 / 3981 / 3567	4318 / 4331 / 3658	3930 / 3867 / 3440	3663 / 3618 / 3308	3959 / 3858 / 3469	3708 / 3664 / 3352	4071 / 4009 / 3582
trix11.scr	4201 / 4079 / 3792	4460 / 4359 / 3973	4914 / 4890 / 4218	4353 / 4244 / 3864	4055 / 3938 / 3674	4439 / 4294 / 3897	4100 / 3984 / 3720	4494 / 4386 / 4006
trix12.scr	5221 / 5038 / 4670	5306 / 5266 / 4856	5739 / 5750 / 5039	5199 / 5152 / 4759	4983 / 4875 / 4547	5333 / 5241 / 4870	5028 / 4920 / 4592	5340 / 5294 / 4901
trix13.scr	4066 / 4036 / 3632	4273 / 4230 / 3792	4689 / 4682 / 3935	4151 / 4112 / 3675	3966 / 3895 / 3519	4294 / 4132 / 3712	4012 / 3940 / 3564	4292 / 4254 / 3817
trix14.scr	4828 / 4756 / 4487	5040 / 5006 / 4618	5480 / 5516 / 4762	4937 / 4899 / 4511	4721 / 4667 / 4366	5097 / 5026 / 4638	4768 / 4712 / 4412	5078 / 5041 / 4653
trix15.scr	4076 / 3981 / 3699	4407 / 4323 / 3877	4798 / 4805 / 4082	4302 / 4207 / 3767	3977 / 3834 / 3590	4350 / 4147 / 3784	4024 / 3880 / 3636	4443 / 4349 / 3909
trix16.scr	5003 / 4866 / 4638	5177 / 5114 / 4770	5680 / 5675 / 5123	5065 / 5008 / 4657	4861 / 4742 / 4517	5188 / 5083 / 4782	4908 / 4788 / 4564	5206 / 5150 / 4799
trix17.scr	5551 / 5415 / 5160	5682 / 5672 / 5344	6250 / 6231 / 5562	5577 / 5559 / 5242	5423 / 5301 / 5038	5716 / 5680 / 5362	5468 / 5348 / 5084	5718 / 5701 / 5384
trix18.scr	4137 / 4096 / 3836	4279 / 4234 / 3989	4722 / 4721 / 4183	4165 / 4125 / 3870	4028 / 3987 / 3718	4287 / 4133 / 3920	4076 / 4032 / 3764	4306 / 4267 / 4012
trix19.scr	3345 / 3275 / 3048	3450 / 3408 / 3179	3686 / 3686 / 3455	3326 / 3293 / 3061	3233 / 3171 / 2924	3389 / 3331 / 3108	3280 / 3216 / 2972	3467 / 3435 / 3203
trix20.scr	4487 / 4394 / 3974	4674 / 4614 / 4152	5039 / 5028 / 4250	4567 / 4502 / 4036	4328 / 4229 / 3870	4694 / 4625 / 4095	4376 / 4276 / 3916	4708 / 4644 / 4178
trix21.scr	4096 / 4052 / 3697	4215 / 4147 / 3892	4646 / 4600 / 4226	4102 / 4038 / 3763	3973 / 3901 / 3558	4265 / 4096 / 3819	4020 / 3948 / 3604	4243 / 4180 / 3905
trix22.scr	4749 / 4667 / 4323	4873 / 4826 / 4463	5312 / 5295 / 4695	4767 / 4711 / 4353	4606 / 4543 / 4205	4904 / 4835 / 4498	4652 / 4588 / 4252	4908 / 4853 / 4495
trix23.scr	3990 / 3909 / 3384	4289 / 4276 / 3579	4782 / 4789 / 3734	4175 / 4162 / 3446	3840 / 3796 / 3267	4290 / 4156 / 3519	3888 / 3840 / 3312	4316 / 4304 / 3588
trix24.scr	4971 / 4824 / 4514	5088 / 5056 / 4695	5693 / 5703 / 4940	4988 / 4943 / 4581	4845 / 4720 / 4383	5160 / 5098 / 4731	4892 / 4764 / 4428	5129 / 5085 / 4723
trix25.scr	4998 / 4882 / 4500	5133 / 5096 / 4641	5615 / 5615 / 4806	5026 / 4972 / 4525	4866 / 4738 / 4381	5167 / 5080 / 4649	4912 / 4784 / 4428	5167 / 5114 / 4667
trix26.scr	3505 / 3430 / 3267	3681 / 3624 / 3438	4054 / 4037 / 3709	3557 / 3504 / 3294	3388 / 3325 / 3148	3582 / 3516 / 3352	3436 / 3372 / 3192	3698 / 3646 / 3436
trix27.scr	2931 / 2857 / 2666	3171 / 3080 / 2792	3467 / 3463 / 2920	3050 / 2957 / 2668	2818 / 2733 / 2554	3014 / 2950 / 2726	2864 / 2780 / 2600	3191 / 3099 / 2810
trix28.scr	3540 / 3447 / 3139	3705 / 3643 / 3282	4016 / 4023 / 3478	3584 / 3522 / 3155	3420 / 3330 / 3024	3646 / 3570 / 3223	3468 / 3376 / 3072	3725 / 3664 / 3297
trix29.scr	4720 / 4642 / 4309	4791 / 4754 / 4432	5205 / 5217 / 4623	4686 / 4647 / 4320	4565 / 4484 / 4183	4846 / 4788 / 4451	4612 / 4532 / 4228	4827 / 4789 / 4462
trix30.scr	4364 / 4303 / 3966	4688 / 4626 / 4161	5172 / 5154 / 4341	4570 / 4510 / 4045	4235 / 4189 / 3859	4658 / 4569 / 4070	4280 / 4236 / 3904	4711 / 4652 / 4187
trix31.scr	4449 / 4343 / 4125	4444 / 4416 / 4218	4880 / 4885 / 4494	4337 / 4305 / 4097	4276 / 4215 / 4001	4515 / 4467 / 4260	4324 / 4260 / 4048	4478 / 4447 / 4239
trix32.scr	4700 / 4588 / 4273	4836 / 4787 / 4385	5347 / 5358 / 4638	4732 / 4672 / 4275	4532 / 4467 / 4144	4890 / 4807 / 4418	4576 / 4512 / 4192	4873 / 4814 / 4417
trix33.scr	4119 / 4000 / 3719	4295 / 4237 / 3891	4672 / 4687 / 4141	4187 / 4122 / 3776	3974 / 3867 / 3603	4262 / 4110 / 3803	4020 / 3912 / 3648	4328 / 4264 / 3918
trix34.scr	3325 / 3263 / 3092	3518 / 3464 / 3209	3795 / 3779 / 3444	3406 / 3350 / 3086	3210 / 3142 / 2973	3432 / 3379 / 3149	3256 / 3188 / 3020	3547 / 3492 / 3228
trix35.scr	4009 / 3949 / 3621	4184 / 4116 / 3755	4570 / 4525 / 3943	4058 / 4006 / 3634	3871 / 3835 / 3510	4120 / 4036 / 3707	3916 / 3880 / 3556	4199 / 4148 / 3776
trix36.scr	4141 / 4063 / 3718	4128 / 4107 / 3832	4423 / 4437 / 4047	4015 / 3998 / 3710	4017 / 3942 / 3589	4116 / 4069 / 3773	4064 / 3988 / 3636	4156 / 4140 / 3852
trix37.scr	4294 / 4183 / 3768	4378 / 4347 / 3911	4698 / 4700 / 4014	4257 / 4236 / 3798	4149 / 4033 / 3650	4406 / 4340 / 3829	4196 / 4080 / 3696	4398 / 4378 / 3940

New Name	Original Name
trix1.scr	Trixs - Cannibal Island 2 (2022).scr
trix2.scr	Trixs - Chase (2021).scr
trix3.scr	Trixs - Conscience (2015).scr
trix4.scr	Trixs - Desert dream (2023).scr
trix5.scr	Trixs - Dizzzruptor (2012) (Forever XIII).scr
trix6.scr	Trixs - Draco (2023).scr
trix7.scr	Trixs - Eclipse (2009) (ArtField 2009, 2).scr
trix8.scr	Trixs - Fantastic World (2012) (Forever XIII, 8).scr
trix9.scr	Trixs - Fear (2008) (Forever 9, 3).scr
trix10.scr	Trixs - Forenext (2009) (FOReVER_neXt, 2).scr
trix11.scr	Trixs - Forest Escape (2023).scr
trix12.scr	Trixs - Freedom (2014) (Forever 2014 Olympic Edition, 4).scr
trix13.scr	Trixs - Future (2011) (DiHalt 2011, 3).scr
trix14.scr	Trixs - Gemba (2011).scr
trix15.scr	Trixs - Johnny the Ghost (2023).scr
trix16.scr	Trixs - Journey (2024).scr
trix17.scr	Trixs - Kral (2010) (DiHalt 2010, 2).scr
trix18.scr	Trixs - Kral 2 (2022).scr
trix19.scr	Trixs - Krivan (2021).scr
trix20.scr	Trixs - LAND (2010) (FOReVER 11, 2).scr
trix21.scr	Trixs - Land of freedom (2023).scr
trix22.scr	Trixs - My Jeep ZJ (2010) (ZX AAA Demo Compo 2010, 3).scr
trix23.scr	Trixs - My world (2014) (Chaos Constructions 2014, 4).scr
trix24.scr	Trixs - New Wave (2013).scr
trix25.scr	Trixs - Nomind (2014).scr
trix26.scr	Trixs - Oldman (2023).scr
trix27.scr	Trixs - Pixel (2009).scr
trix28.scr	Trixs - Racer (2019) (DiHalt Lite 2019, 2).scr
trix29.scr	Trixs - Spectrum light (2010) (ArtField 2010, 5).scr
trix30.scr	Trixs - Spiderman (2011) (FOReVER 12, 9).scr
trix31.scr	Trixs - Spiderman2 (2005) (Forever Hex, 3).scr
trix32.scr	Trixs - Spy (2020) (DiHalt Lite 2020, 1).scr
trix33.scr	Trixs - SRT22 (2022).scr
trix34.scr	Trixs - unknown (2015) (Forever 2015 Back to the Cyberspace).scr
trix35.scr	Trixs - Waiting for freedom (2023).scr
trix36.scr	Trixs - Way home (2023).scr
trix37.scr	Trixs - ZX Cyber (2009) (Raww.orgy 2009, 1).scr
